In the contemporary flexible packaging industry, achieving precise functionality is critical. Optimising film permeability has become a fundamental pillar for preserving fresh products, extending shelf life, and reducing food waste. While modified atmosphere packaging (MAP) is the industry standard for balancing gas exchange, its success depends entirely on the pinpoint accuracy of the micro-perforations. Spark Machinery has redefined this standard by integrating advanced machine vision systems, transforming laser perforation into a smart, autonomous, and self-diagnosing solution.
The challenge: Mechanical vs. laser perforation
Traditional mechanical micro-perforation in converting lines suffers from an invisible but severe problem: tool wear and a lack of constant monitoring. Unlike stable laser systems, physical contact causes inconsistencies due to component degradation or variations in the plastic material. A single poorly executed hole or incomplete perforation can invalidate an entire coil, leading to costly waste.

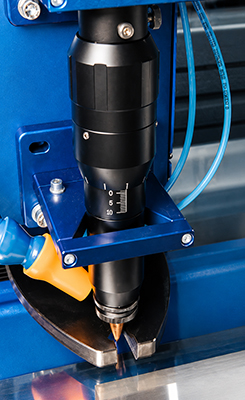

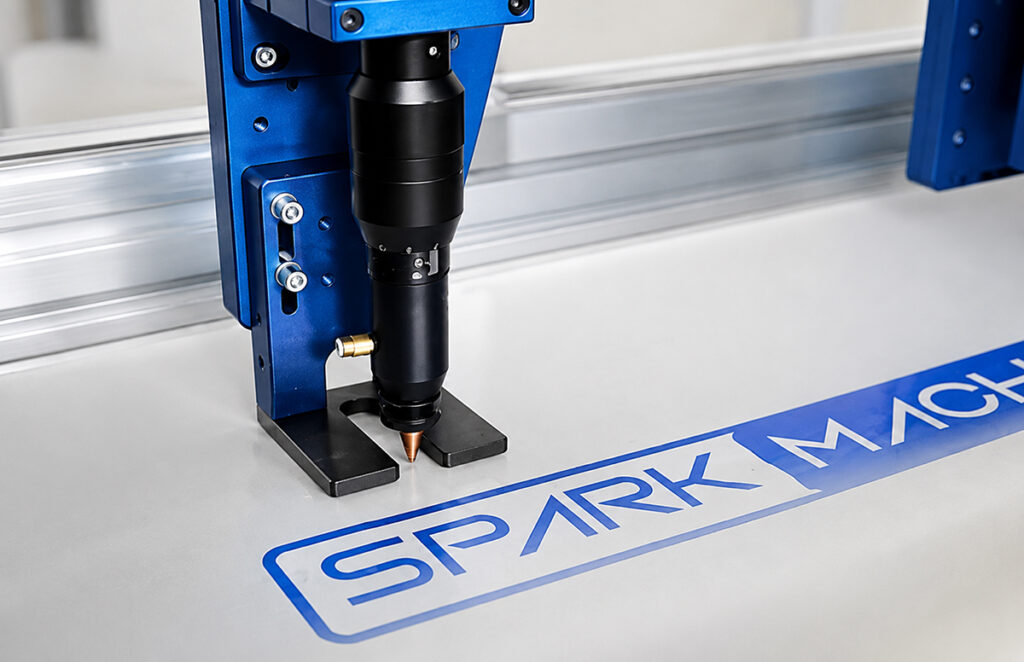

Spark Machinery resolves this challenge by integrating laser perforators with high-resolution cameras that act as the clinical ‘eye’ of the production process.
Ultra-high-speed scanning and real-time metrics
Representing a milestone in conversion engineering, the system performs image acquisition in as little as 1 microsecond. This capability allows up to 28 full analyses per second without slowing down production lines, which can operate at speeds up to 400m/min.

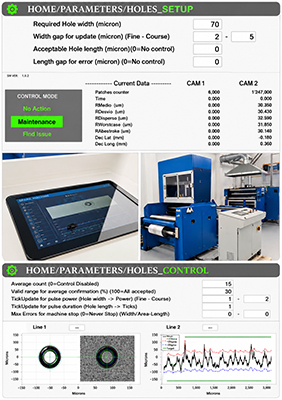

This high frequency of analysis enables the vision software to evaluate accurate metrics at each individual hole to ensure structural integrity and exact permeability:
- Free area calculation: The open surface area is precisely measured to ensure that the gaseous flow of oxygen, carbon dioxide, and ethanol matches the specific product requirements.
- Deviation from theoretical circumference: The system measures the distance between the actual hole and the designed diameter, autonomously modifying parameters to correct deformations.

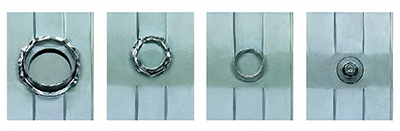

- Melting ring analysis: The system monitors the percentage of the casting ring relative to the free zone, automatically adjusting the laser focus if it deviates from optimal levels.
Cutting-edge innovations: Membranes and pre-excitation
To meet the demands of highly technical packaging environments, Spark Machinery has introduced two major innovations:
Residual membrane recognition
Laser micro-perforation can occasionally leave behind residual membranes – extremely thin polymer layers (> 1 micron) that do not completely evaporate. Though the hole looks open to the naked eye, this membrane blocks gas exchange. The vision system detects these microscopic layers and immediately corrects the perforation parameters.
Laser source pre-excitation
To ensure perfect accuracy from the very first pulse, the system maintains a constant minimum level of gas pre-excitation inside the laser tube. Keeping the gas in a ‘quasi-ignition’ state provides an immediate response and energy stability from millisecond zero. This eliminates weak or missing perforations at start-up or after technical stops.
Instant self-correction
The system’s true competitive advantage lies in its ability to prevent waste rather than just detecting it. When a slight parameter deviation is detected, the machine does not stop. Instead, the control system adjusts the laser power and firing time in real time. This instant feedback loops compensate for subtle variations in material thickness, blend, and temperature, ensuring 100% of the production meets strict specifications.
Key benefits and technical specifications
Implementing this smart laser technology delivers tangible operational and economic benefits:
- Scrap reduction: Real-time autonomous corrections eliminate the production of non-conforming material.
- Sustainability: Optimising the shelf life of fresh produce directly reduces food waste at retail and consumer levels.
- Digital excellence: The system automatically generates comprehensive quality reports for each reel, providing total traceability for consumer brands.
Technical summary:
- Capture speed: 1μs.
- Inspection frequency:
- Membrane detection: >1 micron thickness.
- Control variables: Power, pulse time, and focus.
- Processing speed: Up to 400m/min.
- Integration: Available as a stand-alone unit with an integrated unwinder/rewinder, or custom-designed for seamless integration into existing lines.
